UNSATURATED POLYESTER MOLDING COMPOUNDS - PREMIX (Panasonic)
Polyester resins are unsaturated resins formed by the reaction of dibasic organic acids and polyhydric alcohols. Unsaturated polyester resin dissolved in styrene monomer and benzoyl peroxide was added as the catalyst and re-filling material and glass fibers, and the coloring material is charged and heated to make the unsaturated polyester compound.
| GRADE | APPLICATION | CHARATERISTICS | MOLDING CONDITION |
|---|---|---|---|
| CE2810 | Motor, Trans, Solenoid | Low linear expansion and Specific gravity Fire retardant |
Transfer , Compression, Injection |
| CE2840 | Motor, Trans, Solenoid | Low linear expansion, Thermal shock resistance, Adhesion, Fire retardant |
Transfer , Compression, Injection |
| CE2860 | Motor, Trans, Solenoid | Coloration, Fire retardant | Transfer , Compression, Injection |
| CE2910 | OA, Electricity parts(Housing), Automotive parts | Strength, Dimensional stability, Acoustical characteristics, Fire retardant |
Transfer , Compression, Injection |
| CE2915 | OA, Electricity parts(Housing), Automotive parts | Strength, Dimensional stability, Acoustical characteristics, Fire retardant |
Transfer , Compression, Injection |
| CE2920 | OA, Electricity parts(Housing), Automotive parts | Strength, Dimensional stability, Acoustical characteristics, Fire retardant |
Transfer , Compression, Injection |
| CE2950 | OA, Electricity parts(Housing), Automotive parts | Anti-static, Strength, Dimensional stability, Acoustical characteristics |
Transfer , Compression, Injection |
| CE3010 | OA, Electricity parts(Housing), Automotive parts | Good for Plastic machinability | Transfer , Compression, Injection |
| CE3110 | OA, Electricity parts(Housing), Automotive parts | Dimensional stability, Tracking-resistivity, flame resistance |
Transfer , Compression, Injection |
| CE5100 | Plug Cap, Contact breaker case, Trimmer capacitor | Electric insulation, Scratch resistance | Transfer, Injection |
| CE5410 | Plug Cap, Contact breaker case, Trimmer capacitor | Electric insulation, Scratch resistance | Transfer, Injection |
Characteristics by usage
1. Automotive
Applications : Drive motor, Fan motor, Electromagnetic clutch coil, Igniter, etc.

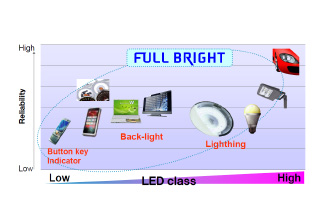

2. Electrical and electronic products

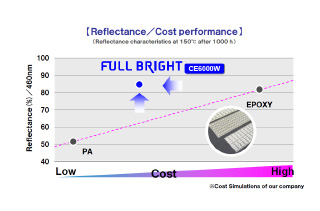

Excellent durability of reflectance : 85%(150℃ after 1,000h), 93%(UV+140℃ after 1,000h)
Molding method : Injection molding, Transfer molding
| Property | Unit | Recommend | ||
|---|---|---|---|---|
| Moldability | Spiral flow at 150℃ | cm | 60~75 | |
| Curelasto meter | GT at 150℃ | S | 20 | |
| Torque after 180s | kgf･cm | 61 | ||
| Melt viscocity | at 150℃ | Pa･s | 85 | |
| Mold shrinkage（Transfer) | ％ | 1.0 | ||
| Mechanical strength |
Flexural strength (Injection） | MPa | 84 | |
| Flexural modulus | GPa | 7 | ||
| Tensile strength (Injection） | MPa | 51 | ||
| Optical characteristic |
Initial reflectance at 460 nm | % | 96 | |
| 150℃×1000h | % | 87 | ||
| 120℃×1000h under ultra-violet rays | % | 92 | ||
| Specific gravity | - | 2.04 | ||
| Material conservation condition | ℃ | at room | ||
| Thermal characteristic |
CTE α１（ 60℃～80℃ ) ※Parallel |
10-5 /℃ | 5.7 | |
| Heat Deflection Temperature |
℃ | >250℃ | ||
CE2800 Series
Applications : For filler part of various kinds of motor, transformer and coil
CE2900 Series
Applications : For office automation equipment, chassis of audio equipment, chassis of electrical and electronic components, automotive electrical components.
3. Dish, Daily necessities SHEET TYPE
Low warpage, strength,molded surface uniformity, and contamination resistance.
Applications :
For trays for staff canteen and hospital diet.
3. Dish, Daily necessities BMC TYPE
Beautiful appearance representing artificial marble design.
Applications :
For hotel goods, such as ashtray, dust bin, tissue paper case and soap case.
